FPS-26

Height Finder


Detail:

Avco Corporation built this height-finder radar that operated at a frequency of 5400 to 5900 MHz. This radar was deployed in the 1960s. This equipment operated on the C-band and was used in SAGE operations at a number of Pinetree Line radar stations.

Locations:

Alsask, SK

44 Radar Squadron

FPS-26



Armstrong, ON

38 AC&W Squadron

FPS-26

1963-1974

Baldy Hughes, BC

54 AC&W Squadron

FPS-26

1964-1975

Barrington, NS

23 AC&W Squadron

FPS-26



Beaverbank, NS

22 AC&W Squadron

FPS-26



Dana, SK

45 Radar Squadron

FPS-26



Gander, NF

226 AC&W Squadron

FPS-26



Gypsumville, MB

47 Radar Squadron

FPS-26



Lowther, ON

639 AC&W Squadron

FPS-26A

1963-

Moisie, QC

211 AC&W Squadron

FPS-26A

1963-

Pagwa, ON

37 AC&W Squadron

FPS-26



Penhold, AB

43 Radar Squadron

FPS-26



Puntzi Mountain, BC

55 AC&W Squadron

FPS-26

1963-

Ramore, ON

35 AC&W Squadron

FPS-26



Sioux Lookout, ON

39 AC&W Squadron

FPS-26A

1963-

Sydney, NS

221 AC&W Squadron

FPS-26



Yorkton, SK

46 Radar Squadron

FPS-26



Photos:


Click on the description text to view the photograph.

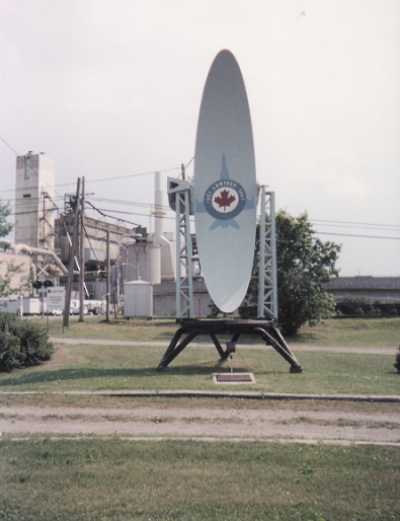

  1. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

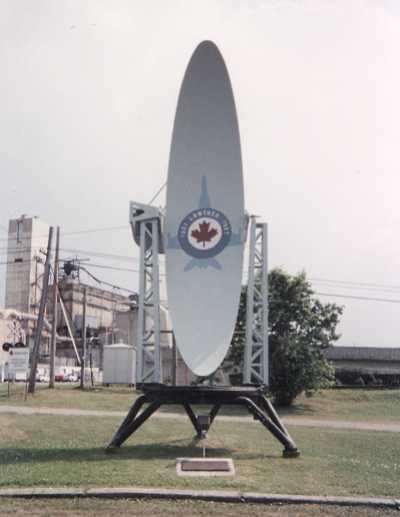

  2. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

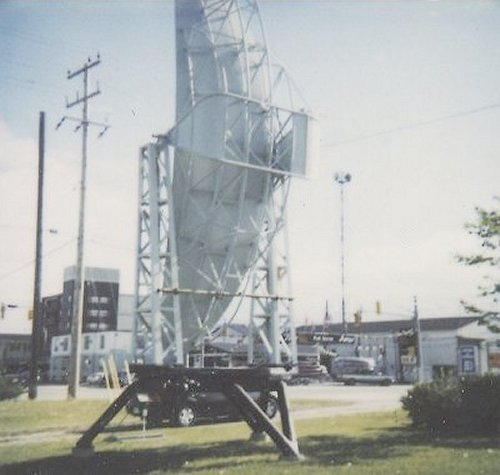

  3. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

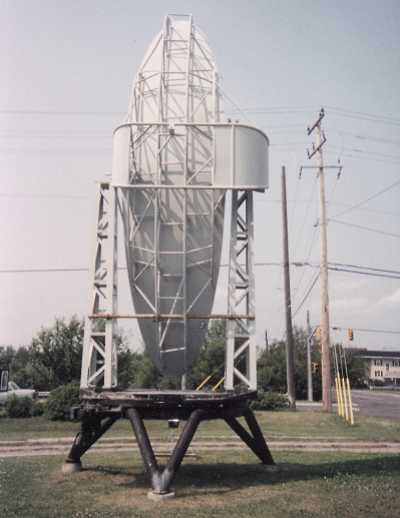

  4. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

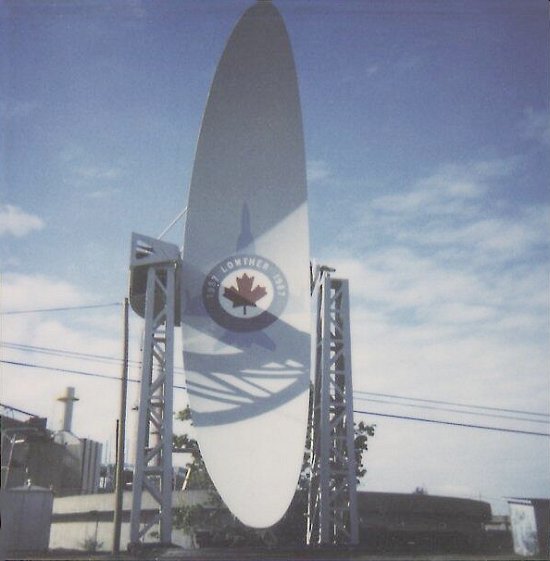

  5. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

  6. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

  7. Memorial AN/FPS-26 height finder radar antenna in Kapuskasing, ON - 1998.
    Courtesy of Julie Latimer.

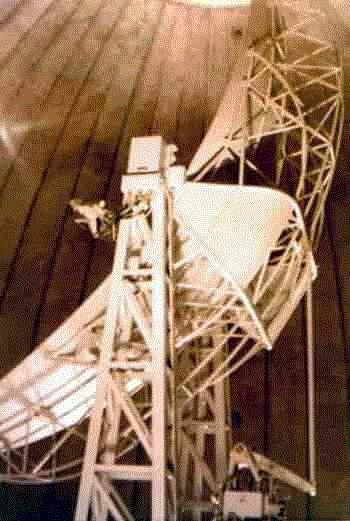

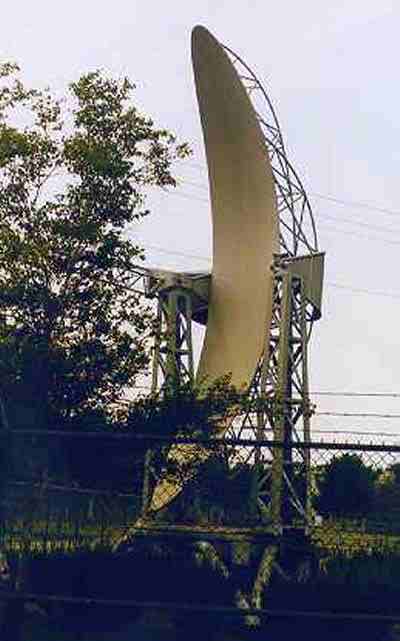

  8. AN/FPS-26 height finder radar antenna.
    Courtesy of Gene McManus.

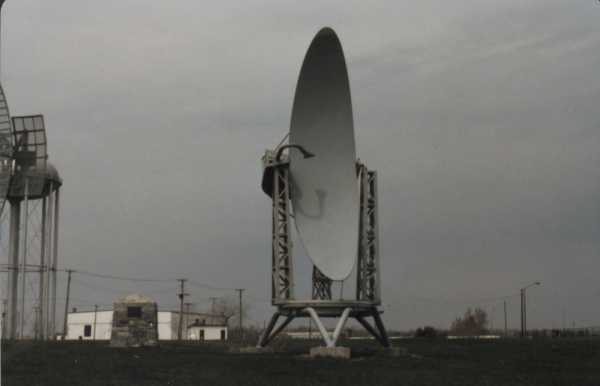

  9. AN/FPS-26 height finder radar antenna.
    Courtesy of Gene McManus.

  10. AN/FPS-26 height finder radar antenna.
    Courtesy of Gene McManus.





Updated: February 23, 2002
