Ramore, Ontario

1958 – Historical Report – USAF Historical Division


Historical Record
912th AC&W Squadron
Ramore, Ontario
1 April 1958 to 30 June 1958

Section I

REQUIRED DATA

  1. Unit and Location

912th Squadron
Ramore, Ontario, Canada

  1. Name and Grade of Commander

John E Ciccolella, Major, USAF

  1. Chain of Command (Superior Echelons)
  2. HQ, USAF
    HQ, ADC, Ent Air Force Base, Colorado
    HQ, EDAF Stewart Air Force Base, New York
    HQ, 30th ADiv, Willow Run Air Force Station, Michigan

  • Subordinate Units (Down to and including squadrons)
  • None

  • Mission (Give authority and brief statement of primary mission)
  • To maintain radar surveillance for the purpose of providing the associated Air Defence Direction Center(s) and ADCC with early warning of air activity within the area of responsibility; to conduct air defense operations within the assigned sub-sector of responsibility and train continuously for effective accomplishment of this mission. Authority: 30th Air Division (Defense) Regulation 20-2, 5 October 1956.

  • Personnel
  •

    Officers

    Airmen

    Civilians

    Total




    Assigned

    20

    162

    20

    202




    Attached

    17

    141

    22

    180



  • Equipment (Give official nomenclature and quantity of mission-type equipment)
  • AN/FPS-3C (1); AN/TPS-502 (1); AN/FPS-502 (1); AN/GPX-7 (2); AN/GPS-T2 (1); AN/UPS-T5 (1); AN/GPA-30 (1); AN/GRC-27 Remote (2); AN/GRC-27 Non Remote (1); AN/GRT-3 (2); AN/FRT-502 (5); AN/FRT-503 (1); AN/URG-60 (5); AN/FRT-501 (2); CR-91 (2).

    Section II

    COMMENTARY

    Administration and Personnel:

    Key personnel for this period has not changed. The major problem for this period was a change to the Unit Manning Document. The Air Police Section has been cut in half with an expected result of insufficient security. Before correspondence could be initiated requesting the lost spaces be re-authorized, we were informed that no UMD Change Requests would be permitted, due to the fluctuation in the SAGE manning. Due to an overseas site, with a definite tour, ten (10) officers arrived at this station during the period 1 January through 30 June 1958, while five (5) officers departed. Sixty-seven (67) airmen arrived this period while seventy-one (71) departed.

    Operations:

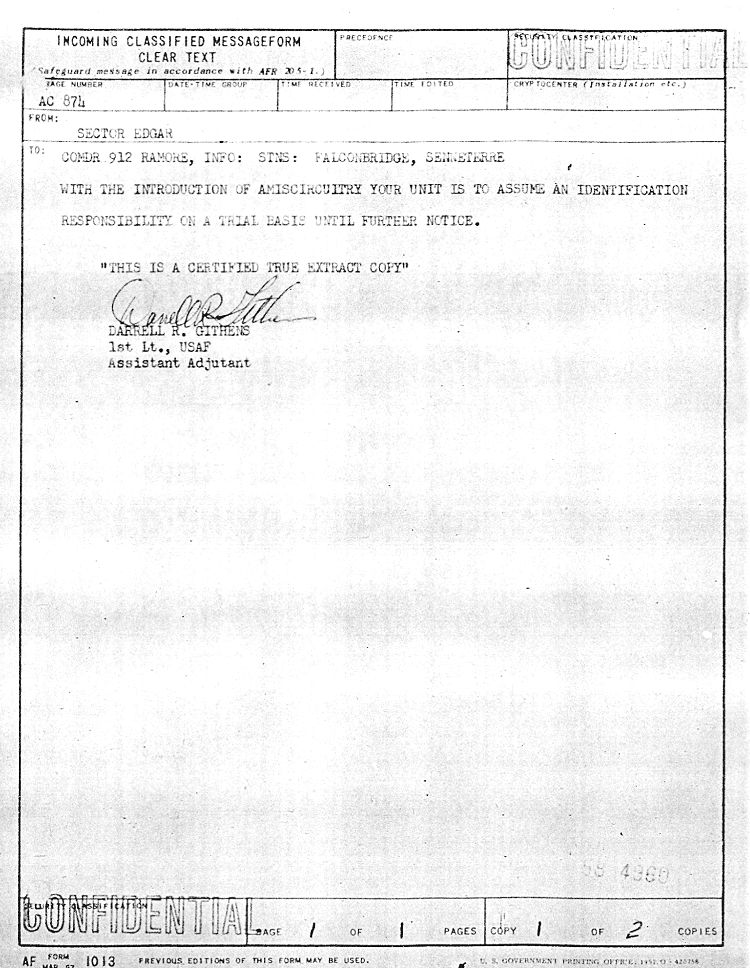

    On 11 April 1958, a conference was held at 37th Air Division (Defense), concerning WEX/VAL missions in which this squadron will participate. Due to WEX/VAL commitments, three (3) additional PPI scopes, with cables, were obtained for this unit, together with additional equipment for other sections. Also during April, the Operations Room was modified from a two (2) level, split type dias, to conform to the ADC standard for GCI sites. During the period 15 April through 9 May 1958, while we were being modified, we assumed an early warning function only, with no air/ground communications. On 13 June 1958, 3 Sector ADCC notified this station by Message AC 874 (Attachment #1), that the 912th Squadron would assume identification responsibility on a trial basis. It is expected that after one (1) month the identification function will become permanent.

    Communications and Electronics:

    During the period of the modification to the Operations Room, all communications wires and boxes were removed or replaced. This work included building of a new monitor console, and relocating the Operation’s communication console. Also during this period, the radar maintenance section completely recabled all scopes in the Operations Room. Cable diagrams were made to show routing of all radar cables. The phase one (1) overhaul of the AN/FPS-3C and AN/FPS-502 was accomplished during the period 6 May through 23 May 1958, by the Canadian Aviation Electronics overhaul team. All three radomes were painted during June 1958.

    Typed Name and Grade of Commander

    John E Ciccolella, Major, USAF

    Signature
