Saglek, Labrador

1995 – North Warning System – Public Works & Government Services Canada

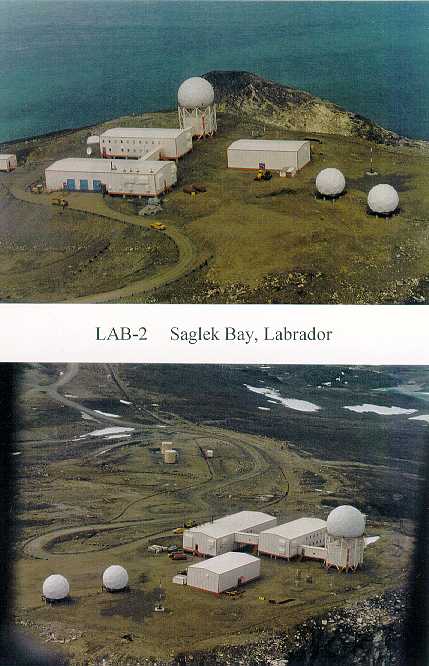

SITE: LAB-2, SAGLEK



A. LOCATION/TERRAIN/TOPOGRAPHY

1. Location:

The site is located at the summit of Cape Uivak on the mouth of Saglek Fiord. The elevation at this point is 549 m. The geographical coordinates are: 62° 39" W, 58° 28" N. The closest source of support is the Goose Bay LSS. Flight time from the LSS is 3 hours 20 minutes by helicopter under normal conditions. A helipad is located onsite, as well as an abandoned airstrip which may be useable.

2. Terrain:

The terrain is rocky and boulder strewn. Sheer cliffs drop off to the sea around most of the summit site. The most prominent feature of the surrounding area is the Torngat Mountains, whose peaks in the area are up to 914 m above sea level. Search and Rescue is difficult due to these features. The area is typified by deep valleys and fiords with terraced glaciofluvial deposits. Small colluvial aprons and fans and alluvial terraces are present. Vegetation is scarce at the summit, consisting of lichen and a few small clumps of grass. At lower elevations, wet meadows support sedges, grasses, mosses and shrubs.

3. Topography:

Saglek is located at the foot of the Torngat Mountains, which rise steeply to the west. The area has been extensively glaciated and the site is on the edge of a Fiord.

B. CLIMATE

1. Precipitation:

Annual Average: 740 mm

Snowfall 425 cm

Rainfall 315 mm

2. Temperature:

Yearly Average Minimum: -31°C

Yearly Average Maximum: +10°C

3. Characteristics:

Heavy winds and blowing snow are normal in the winter months. Fog and rain are common during the spring and fall. Coastal waters are ice infested for much of the year.

C. SITE POPULATION

This LRR was transitioned to Unattended status on 22 September 1995. Refer to CDRL NT-10: Unmanning Transition Plan - NWS Long Range Radar Sites for details of changes to site accommodations and facilities.

D. LAND USE

LAB-2, Saglek serves the native population of coastal northern Labrador as a base camp for fishing and hunting activities. Current resource use in the area is intermittent and seasonal. The area is considered to have recreational capacity, largely due to its highly scenic qualities. No mineral deposits of any commercial significance have been found in the area although recent field surveys have been undertaken.

E. WILDLIFE

Extending inland west about 40 km from the radar station, Saglek Fiord is an important wintering ground for polar bear. Two herds of barren ground caribou range as far east as the Saglek region from the George River herd, centered 180 km west across the mountains in Quebec. Varying numbers of animals, mostly bulls, from the George River herd are present from June to September. Some members of the Torngat herd of northern Labrador, which is comprised of roughly 10,000 animals in total, are present between April and June on the northern side of Saglek Fiord, about 25 km north of the radar site where part of the herd has a calving area. In general, caribou presence on the summit radar site itself is considered rare, and only during summer months are caribou regularly seen on the slopes by the airstrip.

The marine mammal population of Saglek Fiord is an important resource. Parks Canada (1982) lists the fiord as a colony ground for beluga, whale, and a pupping area for bearded seal. Several Other seal species may be present at Saglek, including grey seal, harp seal, harbour seal, and hooded seal.

A number of other arctic mammal species are known in the Saglek area, including arctic hare, arctic fox, and wolf. Red fox may also be present and black bear is reported on occasion.

Bird species and population numbers are not believed to be extensive for the Saglek region near the radar site but available information is sparse. Common loon and red throated loon are present. Some species of sea-ducks shelter in Saglek Fiord. Common eider and old squaw nest on offshore islands. Harlequin and common merganser are frequently present. Canada geese occupy wetlands in the region during breeding season. Rock ptarmigan are common on the highlands around Saglek, and are known to breed there. Several shorebird species nest in the Saglek area, including semi-palmated plover, spotted sandpiper, solitary sandpiper, least sandpiper, and semi- sandpiper. There are small glaucous gull colonies and some black guillemot nest sites in the Saglek area but no nesting areas near the project site.

F. HERITAGE RESOURCES

Saglek Fiord is an area of archaeological importance. Sites of human occupation dating back to 6,000 years have been identified. Approximately, one hundred and fifty sites on the coastal islands, fiord shoreline, and highlands above the fiord have been isolated, but only a few have been thoroughly examined. In particular, eight historical sites near the beach within five kilometers of the base site have been identified but not fully examined. Several of these sites are within one kilometer of the LAB-2 beach area but are isolated by the steep banks of a stream. and have not been disturbed by previous military occupants.

G. WATER SUPPLY

Water from a nearby freshwater lake is pumped through a pipeline to the water tank, once annually during the summer.

H. SEWAGE DISPOSAL

Sewage is collected in a septic tank. Sludge deposited in the septic tanks is removed, as necessary, and disposed of in a sanitary landfill.

I. WASTE DISPOSAL

Domestic waste is incinerated in on-site incinerators.

J. KITS

Kit Location

1. Fire Fighting Equipment TSM, All Modules

2. Safety Boards TSM, ACC Module, RCM

3. Search and Rescue TSM

4. Disaster/Survival Emergency Shelter

5. POL Spill ATB

6. Chemical Spill TSM

7. PCB Spill TSM

8. First Aid Supplies ACC Module First Aid Room



K. POL STORAGE AND DISTRIBUTION

Tanks: Total Storage Capacity, external tanks (Litres) 2,523,536 L

1. Jet A- 1 (Aviation & PGS): Total Capacity 2,523,536 L

Total number of tanks (Steel) 9

a. Beach Area:

2 tanks 871,761 L ea 1,743,522 L

b. Building Site Area:

2 tanks 307,369 L ea 614,738 L

2 tanks 13,638 L ea 27,276 L

c. Airfield Area:

3 tanks 46,000 L ea 138,000 L

Summit fuel tanks W22C and W22D are equipped with a lined containment dyke.

Pipelines: Total Length (including building feeder lines) 5,530 m

a. 150 mm diameter pipe 650 m

b. 50 mm diameter pipe 4,880 m

Pumphouses: Total Number 2

a. Building Site Tank Area 1

b. Airfield Tank Area 1

System: Product delivered during summer marine sealift. Beach POL tanks contain sufficient tankage to accept full 27 month resupply quantity from tanker. Summit POL tankage contains sufficient storage capacity for 12 months operation. Beach POL pumping system and pipeline transfers fuel to summit POL tanks in summer only. Summit POL pumping pipeline transfers fuel to day tanks in Power Plant. Separate small fuel tankage and transfer system is provided at Emergency Shelter and Airstrip Building.

Sources Include: 1. Initial Environmental Evaluation of the North Warning System Project, Vols. 1 & 2.

Monenco- Eyretechnics Group, 1987(vol. 1), 1989(vol.2).

2. CDRL SR-03 NWS Bulk Liquid POL Facilities Report. FRONTEC, September 1999.

3. NWS Site Record Drawings

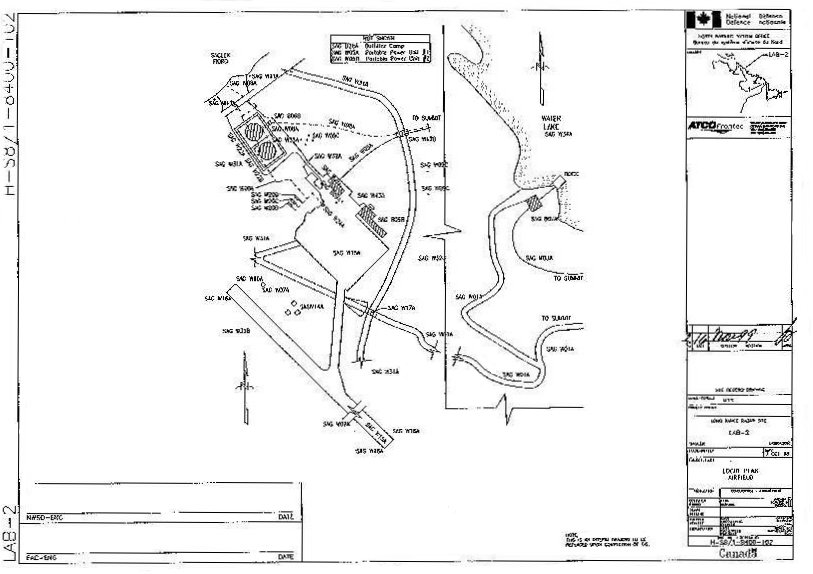

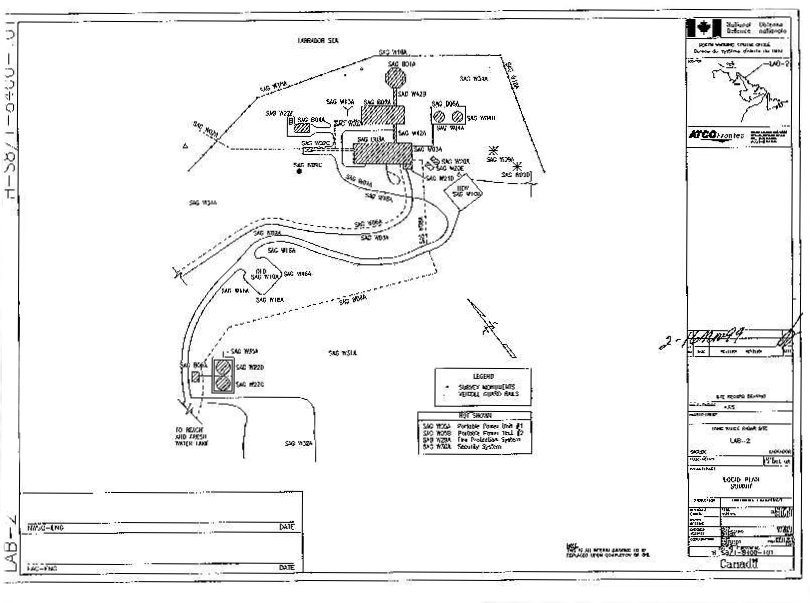

FACILITY LOCID REGISTER

LOCID# FACILITY NAME

SAG B1A Radar Communication Module Radome

SAG B2A Accommodation Building

SAG B3A Technical Services Building

SAG B4A Emergency Shelter

SAG B5A Water Storage Building

SAG B6A POL Pump House

SAG B6B POL Pump House

SAG B7A Water Pump House

SAG B9A Airstrip Terminal Building

SAG B9B Old Lower Camp

SAG B15A Storage Shed

SAG B15B Storage Shed

SAG B20C Storage Shed - POL

SAG W1 Road

SAG W2A Sanitary Sewers

SAG W2C Septic Tanks

SAG W3 Water Distribution

SAG W4A Water Storage Tank

SAG W4B Water Storage Tank

SAG W6A Power Distribution Cables

SAG W7A Illuminated Wind Cone

SAG W8 POL Distribution Lines

SAG W9A SGT Platform/Foundation Primary

SAG W9C Various Antenna Structures/Foundations

SAG W9D SGT Platform/Foundation Secondary

SAG W10 Helipad

SAG W11 Bollards

SAG W13 TVRO Foundation/Antenna

SAG W14A Weather Platforms

SAG W15A Runway Area - gravel

SAG W16A Lighting - Airfield

SAG W17A Bridge

LOCID# FACILITY NAME

SAG W18A Fences

SAG W20A POL Jet A-1 Tank, 12H

SAG W20B POL Jet A-1 Tank, 9A

SAG W20C POL Jet A-1 Tank, 1 OA

SAG W20D POL Jet A-1 Tank, 11 A

SAG W20E (Jet A-1 aviation tank), 13H

SAG W21D POL Jet A-1 Vehicle Refueller

SAG W22A Diesel Fuel Tank, 1 B

SAG W22B Diesel Fuel Tank, 2B

SAG W22C Diesel Fuel Tank, 3S

SAG W22D Diesel Fuel Tank, 4S

SAG W24A POL Jet A-1 Refueller

SAG W31 Non-Landscaped Grounds

SAG W32A Open Storage Area POL

SAG W32B Disposal Area

SAG W32C Open Storage Area

SAG W35 Containment Dyke

SAG W42A Walkway

SAG W42B Walkway

NOTE: These LOCID descriptions are currently under revision. The given Facility Name may not appropriately represent an item's current use. eg. a "Diesel Fuel Tank" now contains Jet A-1 fuel.

CAT I.D.

QTY.

NOUN

PART NUMBER

1067553

C/W

POL SPILL CLEANUP KIT No. 1

CL006

1021477

20 BG

ABSORBENT, MATERIAL 50 QT. BAG

48210

1021572

10 RL

ABSORBENT, MATERIAL 3/8" X 36" X 144 FT

OB150

1044124

150 BG

ABSORBENT, MATERIAL 50 QT. BAG

48230

1021664

1 CS

ABSORBENT,SHEET 200SIUCS 17"Xl9"X3/8"THK

OB100

1059485

8 EA

BOOM, OIL 40 FT. TOTAL LG.

48225

1062419

2 EA

PITCHFORK

R41645

1018094

1 BX

PLASTIC BAG 100 BAGS/BOX

35-50-3B

1008712

4 RL

PLASTIC POLY 6 MIL, 1000 SQ.METERS

VISQUEENCLEAR

1021141

3 EA

HALF MASK, DISPOSABLE TYPE

GT-9999-3005-7

1009276

1 RL

ROPE, POLYPROPYLENE 600 FT.

MIL-R-24049

1013919

20 PR

RUBBER GLOVES, LINED

GLA513 (M)

1061292

2 PR

SAFETY GOGGLES

6367

1062475

2 EA

SHOVEL, ROUND MOUTH

GGG-S-326

1022135

1 EA

SLIPTANK, PORTABLE 100 GAL.

TANK100

1003058

2 EA

SALVAGE DRUMS 85 GAL.

PS-26368

1067552

C/W

CHEMICAL SPELL KIT

CL007

1023947

4 PR

COVERALLS, W/ HOOD & BOOT COVERS

SEA PA5228

1012151

4 PR

GLOVES, CHEMICAL RESISTANT

IIIE220

1063898

1 BX

RAGS, COTTON, 50 LB.

31-25

1062334

4

SIGN, HAZARDOUS CHEMICAL

70852

1022625

4

RESPIRATOR, HALF-FACE

655XO13

1022622

12

CARTRIDGE FILTERS, VAPOUR

655F155

1067554

C/W

PCB SPILL RESPONSE KIT

CL005

1023947

4 PR

COVERALLS, W/ HOOD & BOOT COVERS

SEA PA5228

1022622

12

CARTRIDGE, FILTER, RESPIRATOR

655F155

1012151

4 PR

GLOVES, CHEMICAL RESISTANT

111E220

1022625

4

RESPIRATOR, HALF-FACE

655X013

1062334

4

SIGN, HAZARDOUS CHEMICAL

70852

1002984

1 BX

RAGS, when exhausted use CAT ID 1063898

339-3420

1063898

1 BX

RAGS, COTTON, 25 LB. Box

301-10



Safety goggles can be found in the POL kit and on Safety Boards. Shovels and loose absorbent are provided in the POL kit.
